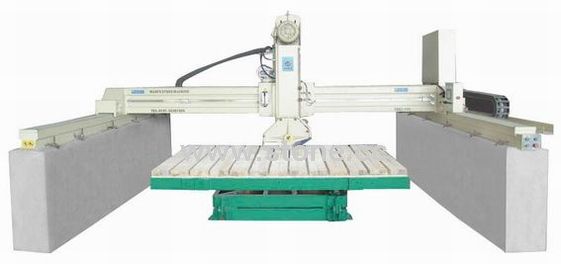

Infrared Bridge Cutting Machine (ZDQJ-400)

• Place of Origin:

   China

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1282275

• Place of Origin:

  China
• Setting The Location Through Auto Beam Moving, Micro-computer Controlled, Highly Precise And Stable, It Is Suitable For The Cutting Of The Big Granite And Marble Blocks. Details as followeing:

  Name                                    unit    parameter
  Blade Diameter                           mm     300-400
  Range of Vertical and Horizontal Motion  mm     3200
  Range of Lifting                         mm     200
  Power Of Main Motor                      KW     11
  Total Power                              KW     15.8
  Size of Worktable                        mm     3000*1950
  Rotation Angle of Worktable              n      90
  Overturning Angle of Worktable           n      85
  Size of the Machine                      mm     6000*5000*2800
  Weight of the Machine                    T      5.6
